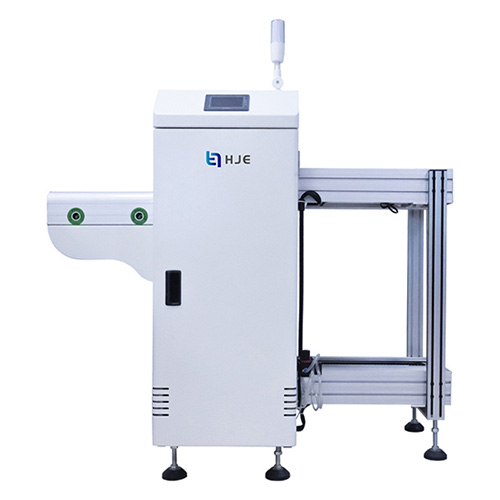

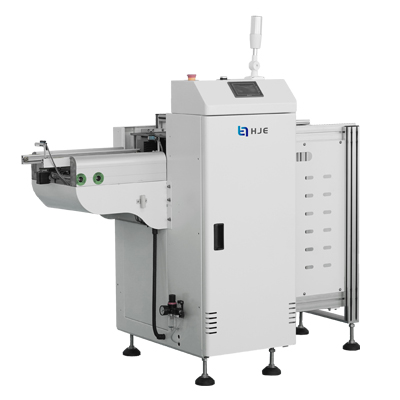

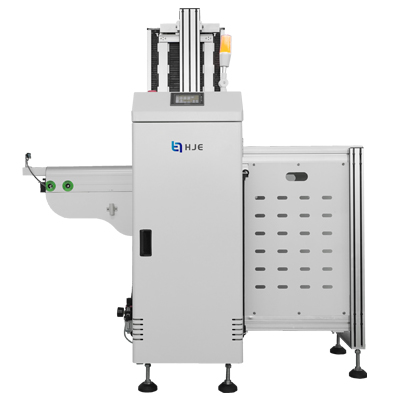

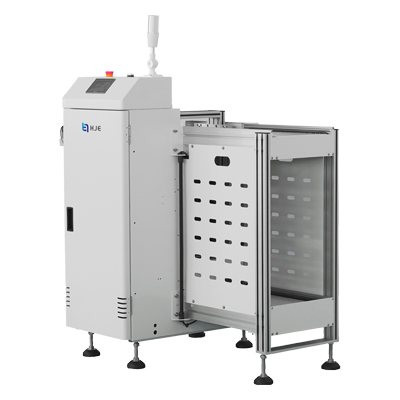

Unloader

Product Functions

This unit is used to collect PCBs into magazine at the end of SMT/DIP or testing production line. The PCB’s are collected from upstream machine using attached conveyor and pushed into the magazine automatically. Avoid manual touch, reducing labor cost, increasing production efficiency.

ISO Certified

Top Rated

Cost Effective

Need more help?

Give us just a missed call or chat on whatsapp with our team today!

Product Features

  • Full Steel structure, welded with metal plate and high temperature spray coated for the outer surface.
  • Mitsubishi PLC control system, touch screen interface.
  • Lifting by motor, transmission by precision ball screw, effective step distance can be set by 10,20,30,40mm。
  • Material containers are fixed by four-position cylinder, moving stable.
  • Board receiving drive by motor, stable, speed adjustable.
  • Photoelectric protection, sound and light alarm in case of abnormality.
  • With Standard SMEMA to communicate with other machines to achieve inline operation.
  • CE certified.

Specification:

Model WIT-PCB250B WIT-PCB330B WIT-PCB390B WIT-PCB460B WIT-PCB625B
Dimension (L×W×H) 1420×765×1200(mm) 1630×848×1200(mm) 1780×925×1224(mm) 1780×962×1224(mm) 2188×962×1224(mm)
Applicable material frame (L×W×H) 355×320×563(mm) 460×400×563(mm) 535×460×570(mm) 535×530×570(mm) 630×530×570(mm)
PCB Size (L×W) 50×50~L350×W250(mm) 50×50~L460×W330(mm) 50×50~L530×W390(mm) 50×50~L530×W460(mm) 50×50~L625×W460(mm)
Air Pressure 5KGf/cm²
Power supply AC220V 50/60Hz
Power 300W
Transport Height 900±30(mm)
PCB Thickness 0.6-4mm
Transport direction L-R or R-L (optional)
Rack Lifting Step 10,20,30,40(mm)
Control Mode PLC+ Touch Screen
