Imagine opening your smartphone or any other electronic device and seeing a maze of tiny components, each playing a vital role in its operation. But, don’t you wonder how all those intricate parts land so perfectly on the board? It’s not magic—it’s a finely tuned process performed by Surface Mount Technology (SMT) machines.
Behind every electronic device lies a rhythmic, precise, and surprisingly elegant process. This is where high-speed robotics meets extreme accuracy, crafting the invisible framework of modern life. Let’s step into this fascinating world and uncover the SMT machine’s working process.
Key Takeaways
- The SMT machines’ working process begins with the precise application of solder paste onto a bare PCB using stencils and dispensers, laying the groundwork for accurate component placement.
- The Pick and Place Machine is a key SMT machine component, capable of placing thousands of tiny electronic parts per hour with high precision using robotic arms and vision systems.
- Reflow soldering is the main PCB soldering technique used to bond components permanently, involving controlled heating that melts the solder paste and ensures durable electrical connections.
- Quality assurance is achieved through advanced inspection systems like AOI and X-ray, which detect alignment errors or solder defects, especially in industries where perfection is critical.

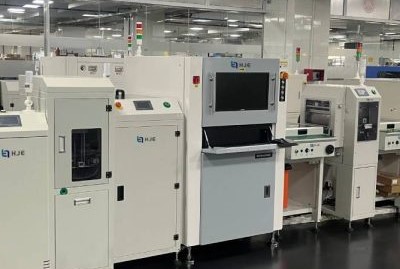

SMT Machines Working Process: Step-By-Step SMT Assembly Process
The Foundation of Assembly: Bringing the Blank Canvas to Life
The journey begins with a bare printed circuit board (PCB). This board acts like an empty stage waiting for its performers. Before components can be added, a layer of solder paste is applied to specific areas. This paste contains tiny solder balls suspended in flux, making it both sticky and conductive.
SMT machines begin their working process here, using stencils and precise dispensers to lay down the perfect amount of paste on every pad. The accuracy in this initial stage is crucial, setting the tone for the entire surface mount technology (SMT) process. Contact us to buy premium SMT machines, which will ensure a seamless SMT process and make your electronics project just right.
The Star Performer Starts Its Magic

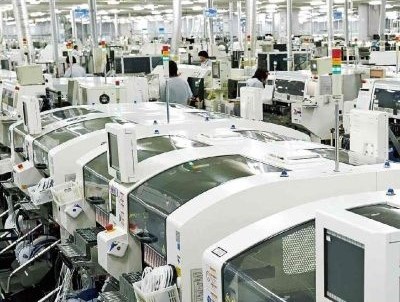

Next comes the pick-and-place machine—arguably the superstar of the SMT process. Its job? To pick tiny electronic components like resistors, capacitors, and microchips and place them precisely onto the PCB where solder paste has been applied. This is where the real magic happens. Using high-speed vision systems and robotic arms, this machine can place thousands of parts per hour with stunning accuracy.
What makes it remarkable is its ability to place thousands of components per hour with pinpoint accuracy. So, this is one of the most vital SMT machine components and plays a pivotal role in the efficiency and quality of modern electronics. Reach out to HJE Tech India Private Limited for the best-quality SMT machines with the finest SMT machine components.
Also Read: SMT Machines: Types and Working Explained
Bonding the Circuit’s Soul
At this stage, everything is in position, but nothing is yet permanent. Once the components are perfectly placed, the board travels through a reflow oven — a tunnel of carefully controlled heat. Here, the solder paste melts and solidifies, bonding the components permanently to the PCB. This process ensures that the components are firmly bonded to the board as the solder cools and solidifies.
This PCB soldering technique is critical for ensuring electrical conductivity and durability. The temperature and timing inside the oven must be meticulously controlled; if it is too hot, components may be damaged; if it is too cold, the solder won’t bond properly. If the soldering isn’t perfect, even a tiny misalignment can cause failure in the final product. Reflow soldering ensures long-lasting electrical connections and is tailored to different board designs.
Invisible Quality Checks
No process is complete without quality assurance. Once soldered, the boards undergo inspection. After soldering, the assembled board undergoes inspection through automated optical inspection (AOI) systems. These machines scan the board for alignment, defects, and solder joint issues.
In some cases, X-ray inspection is used to verify hidden joints. This meticulous attention to detail ensures that every product leaving the line meets the highest standards of precision and performance. In industries like aerospace or medical devices, even the tiniest flaw can have significant consequences. That’s why quality control in the surface mount technology (SMT) process is not just important—it’s essential.
Final Touches and Testing
The final stage in the step-by-step SMT assembly process includes functional testing. The board is powered up and run through simulations to ensure all components perform as expected. This is where engineering meets trust — where every connection, chip, and trace is tested for real-world reliability.
Bottom Line
Understanding the SMT machines’ working process gives us a deeper appreciation for the technology in our lives. From the tiniest capacitor to the smartest chip, each element is placed and soldered through a meticulous process of precision. With advanced PCB soldering techniques, smart SMT machine components, and the unwavering reliability of the pick-and-place machine, the Surface Mount Technology (SMT) process continues to shape the future, one tiny component at a time.
Contact HJE Tech India Private Limited for the best quality SMT machines. We deliver nothing less than perfection to our clients. HJE Tech India Private Limited, established in 2021, aims to provide high-quality solutions for SMT and DIP operations in the EMS sector.
Besides offering our core services, we are also a distributor of SZWIT Board Handling & Traceability Equipment. We aim to reduce non-value-adding operations, streamline EMS processes, and create value for our clients to simplify and make their operations more cost-effective and efficient.
FAQs
What is a Pick and pick-and-place machine, and why is it important?
It’s the robotic star of the SMT line—grabbing tiny components and placing them exactly where they belong at lightning speed.
Can SMT machines handle different board designs?
Yes! They’re highly adaptable and reprogrammable, perfect for everything from simple consumer electronics to complex tech projects.
